EPDM/Rubber gasket extrusion line
it's used for extruding rubber/EPDM strip.
key word:
Category:
Plastic Extrusion Machine
E-mail:
EPDM/Rubber gasket extrusion line
Specification
- Φ65 extruder
|
|
Model |
65 |
|
1 |
application |
Ethylene-Propylene-Diene Monomer(EPDM) |
|
2 |
Material feeding method |
cold feed |
|
3 |
Barrel screw material |
38GrMoAcA High quality nitride steel |
|
4 |
Nitriding depth |
0.4-0.7mm |
|
5 |
The surface hardness of the barrel and screw |
Screw: 850HV barrel: 930HV |
|
6 |
Screw diameter |
65mm |
|
7 |
Output |
40-80kg |
|
8 |
Barrel heating mode |
mold Temperature Controller |
|
9 |
Cooling mode of main machine |
Water cooler cooling |
|
10 |
Power |
22kw |
Machine frame
It is made of steel and plate welded and treated by return stress. It has high steel property and small deformation
Gear box
The product design adopts the specified technical specification, the gear and shaft parts are made of high strength alloy steel, the gear precision is high, the tooth surface hardness is good, the output end of the hollow shaft is equipped with super-specification thrust bearing, bearing the back thrust of the screw, the main standard parts such as bearing and oil seal are all used domestic high quality products, the whole machine has high bearing capacity, stable transmission, low noise and high efficiency.
A. deceleration ratio :16:1
B. input power :55 kw
C. use hard tooth surface grinding gear, low noise and high life, reliable operation
D. forced oil circulation lubrication system
Feeder and Screw
A. barrel and screw material are 38 CrMoAlA high quality nitrided steel
B. nitrided layer depth :0.4-0.7 mm, nitrided hardness: screw 850 HV, barrel 930 HV:
C. screw diameter :90
D. screw structure: special type
E. aspect ratio: L/D=20:1
F. screw speed: 0-55 r/min
G. Surface roughness of screw edges G.:0.4 um
H. inner surface roughness :0.4 um
Mandatory feeding system
A. feeding method: Active feeding with side roller, easy to clean the remaining glue
B. feeding system: gear transmission
- Heating System
A. heating power: group kw*4 6
B. heating power :3- AC380V,50HZ,
C. total heating power :~24 kw
Cooling device
Indirect cooling of circulating water
Main motor
A. motor power :55 kw model Y:
B. motor and main engine installed, running stable vibration small
C. Power :3- AC380V,50HZ,
D. motor synchronous speed 1500 rpm
Electric control cabin
A. speed controller: variable frequency speed control stepless speed control
B. Temperature Control Area: Digital Intelligent Temperature Control Instrument
C. Contactor: Delixi
D. Power :3- AC380V,50HZ
2. Extrusion mould
Die head type: Internal pressure type
Material die head and moulds: High quality die steel, 40Cr
Mould structure: the die、mandrel can be exchanged
Head heating: 2 zones

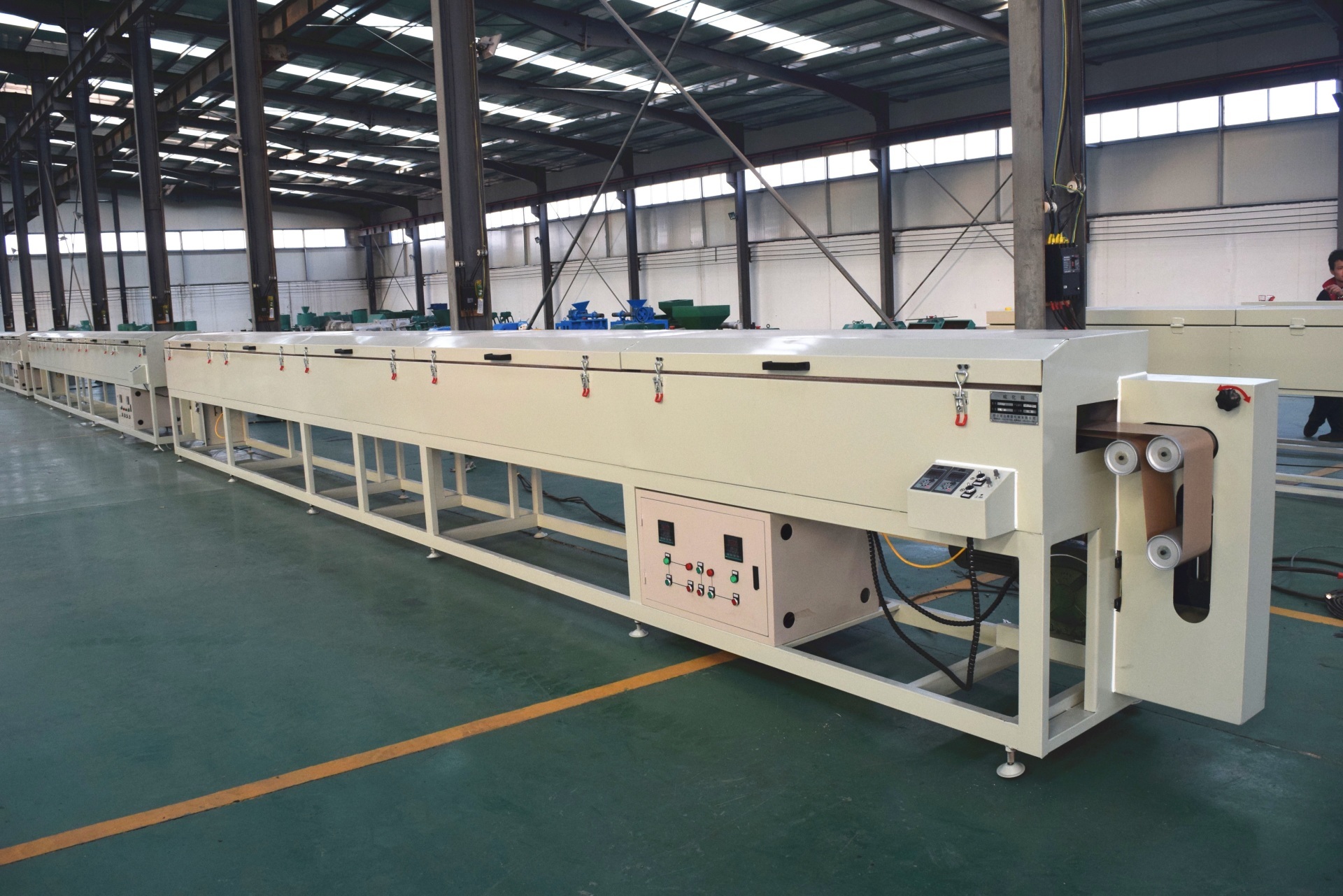

3. Vulcanization box-30M
Dimension：11000*800*1300mm/section
Heating power：24kw/section（Nickel wire）
Power ：AC 3 phase 380V 50Hz
Gear motor：V2-713-4 0.55KW
4. Cooling water tank with haul off machine
Length of the tank: 3500mm
Force of drawing: 2KN
Quantity of belt : 2
Material of the tank: stainless steel
Power of moving motor: 0.55KW
5. 5P cooling water device
|
1 |
dimension |
1340*630*1046mm |
|
2 |
Power of motor |
5.25kw |
|
3 |
voltage |
380V 50/60Hz |

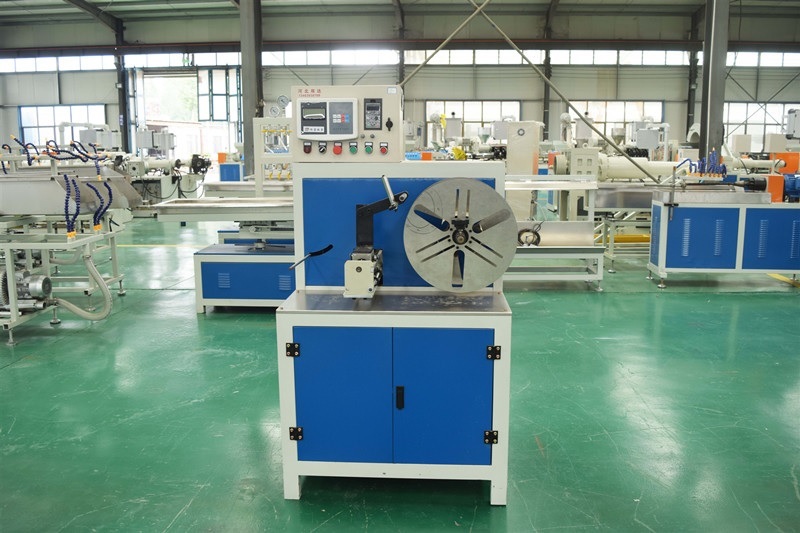

6. New Auto Coiler Machine
Dimensions: outer diameter 400* inner diameter 165* width 130 mm
Motor :0.55 kw
Motor specification :3 phase 5 wire AC380±10%50 HZ
Speed regulation mode: frequency conversion regulation
Width control: wire rower control
Main electrical components: Delixi Electric
