H BEAM LIGHT DUTY ASSEMBLY MACHINE FYHG-1800
The H beam light duty assembly machine is a specialized equipment designed for the quick and efficient assembly of light duty H beams. With a compact design and user-friendly interface, this machine is easy to operate and can significantly reduce assembly time compared to manual methods. The machine is equipped with precision alignment tools and clamping mechanisms to ensure accurate positioning of the H beam components. It also features a hydraulic system for lifting and adjusting the beams, as well as automatic welding capabilities for a seamless finish. Overall, the H beam light duty assembly machine is a cost-effective solution for manufacturers looking to streamline their production process and improve the quality of their H beam assemblies. Its reliable performance and high efficiency make it a valuable asset for any fabrication shop or construction project.
Keywords:
H BEAM LIGHT DUTY ASSEMBLY MACHINE FYHG-1800
Main features:
Lighe duty H beam Auto assembling machine has two models: HG-1800 and HG-2000, which suit for web height of H beam 200-1800 and 200-2000mm
It adopt frequency converter control to control the processing of alignment and orientation of web and flange consequently, and realized automatic control operation.
Gas shielded welding or manual spot welding can be selected according to customer requirements
|
Model |
|
FYHG-1800 |
FYHG-2000 |
|
Web Size |
Thickness(mm) |
50 |
50 |
|
Height (mm) |
180-1800 |
200-2000 |
|
|
Flange size |
Thickness(mm) |
60 |
60 |
|
Height (mm) |
180-600 |
200-800 |
|
|
Workpiece length |
mm |
4000-15000 |
|
|
Assembly speed |
Mm/min |
0.5-6m/min |
|
|
Power |
KW |
9.5 |
|

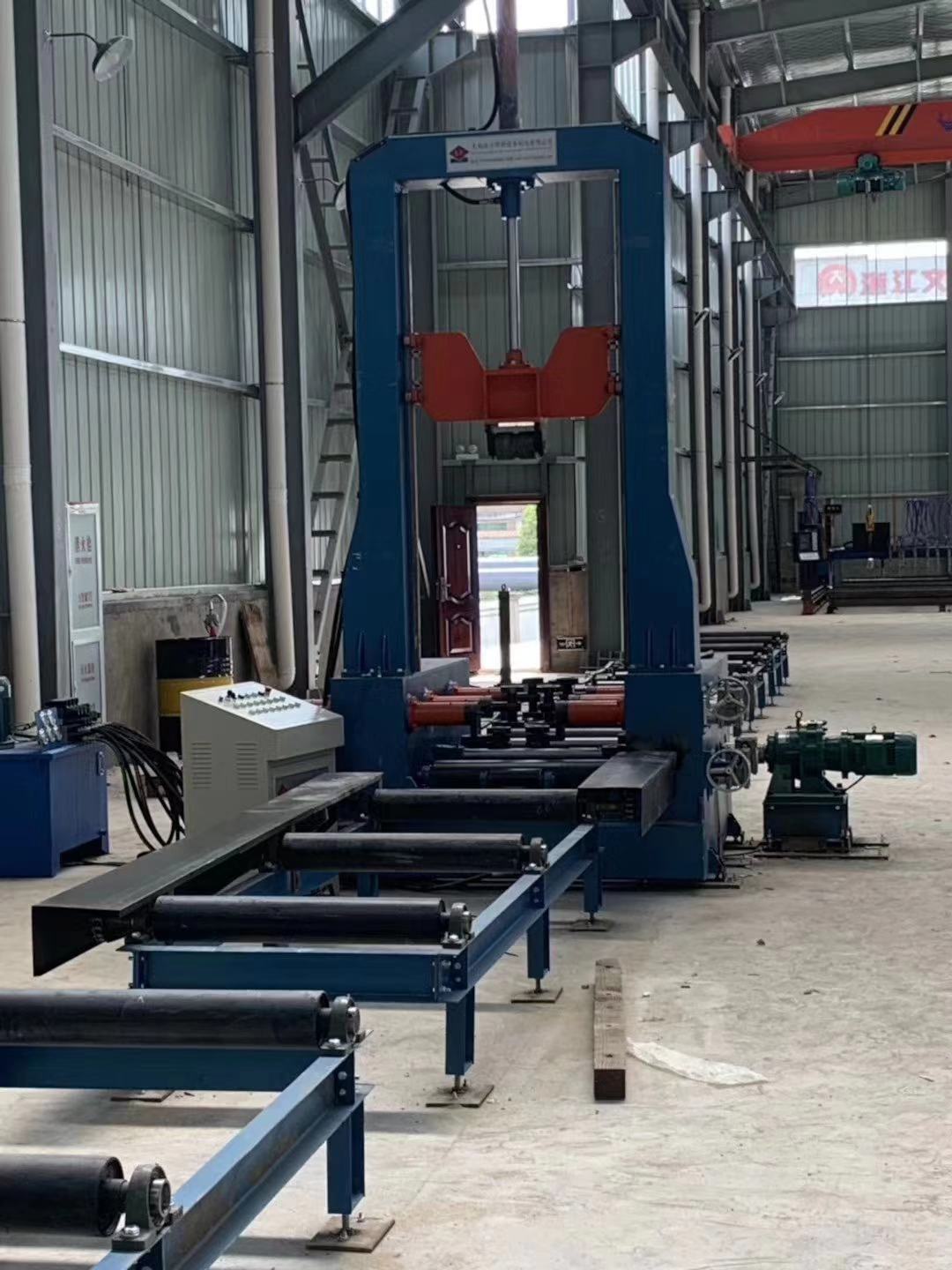

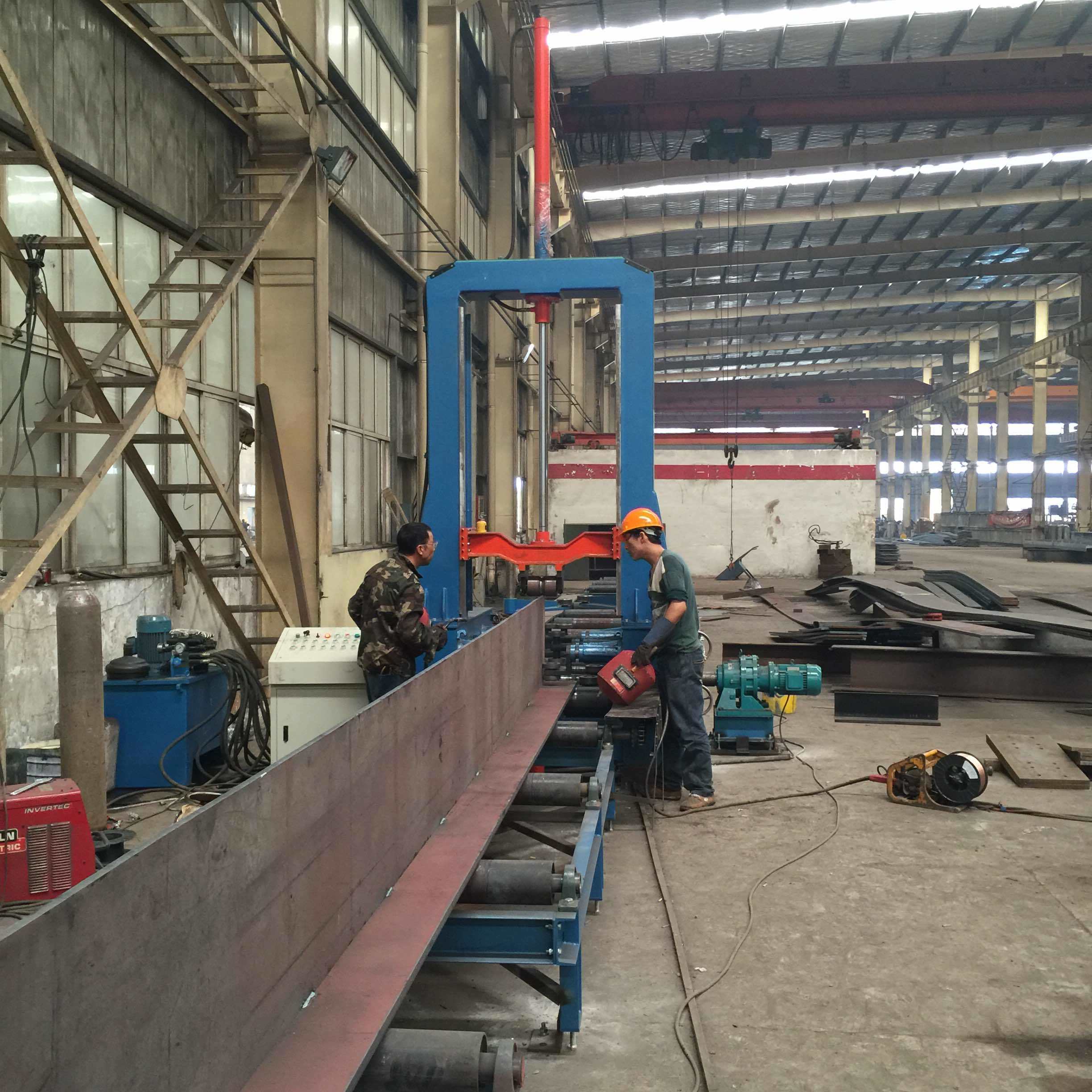

Product display:
FAQ
Which countries do you mainly export to?
Southeast Asia: Vietnam, Laos, Cambodia.
Africa: Rwanda, Tanzania, Mozambique, Mauritania, Sierra Leone, Guinea, Nigeria.
What is the lead time for mass production?
Typically 15 to 30 days, depending on the quantity and items.
What are your payment terms?
We accept credit cards, wire transfers, and letters of credit.
What is your delivery deadline?
EXW, FOB, CIF, and so on. Other delivery terms are negotiable.
Which transportation methods can I choose?
We typically provide customers with FOB prices in U.S. dollars. Upon customer request, we can also offer door-to-door delivery (shipped to your store address) or CIF prices. The port of shipment is Qingdao, which is a few hours’ drive from our factory.
