H BEAM ASSEMBLING WELDING STRAIGHTENING INTERGRAL MACHINE
thisi machine be combined the working procedures of assembling machine, gantry welding machine, and straightening machine into one machine
key word:
Category:
H Beam Assembling Welding Straightening Integral Machine
H beam Assembly Machine
E-mail:
H BEAM ASSEMBLING WELDING STRAIGHTENING INTERGRAL MACHINE
H BEAM ASSEMBLING WELDING STRAIGHTENING INTERGRAL MACHINE
Function:

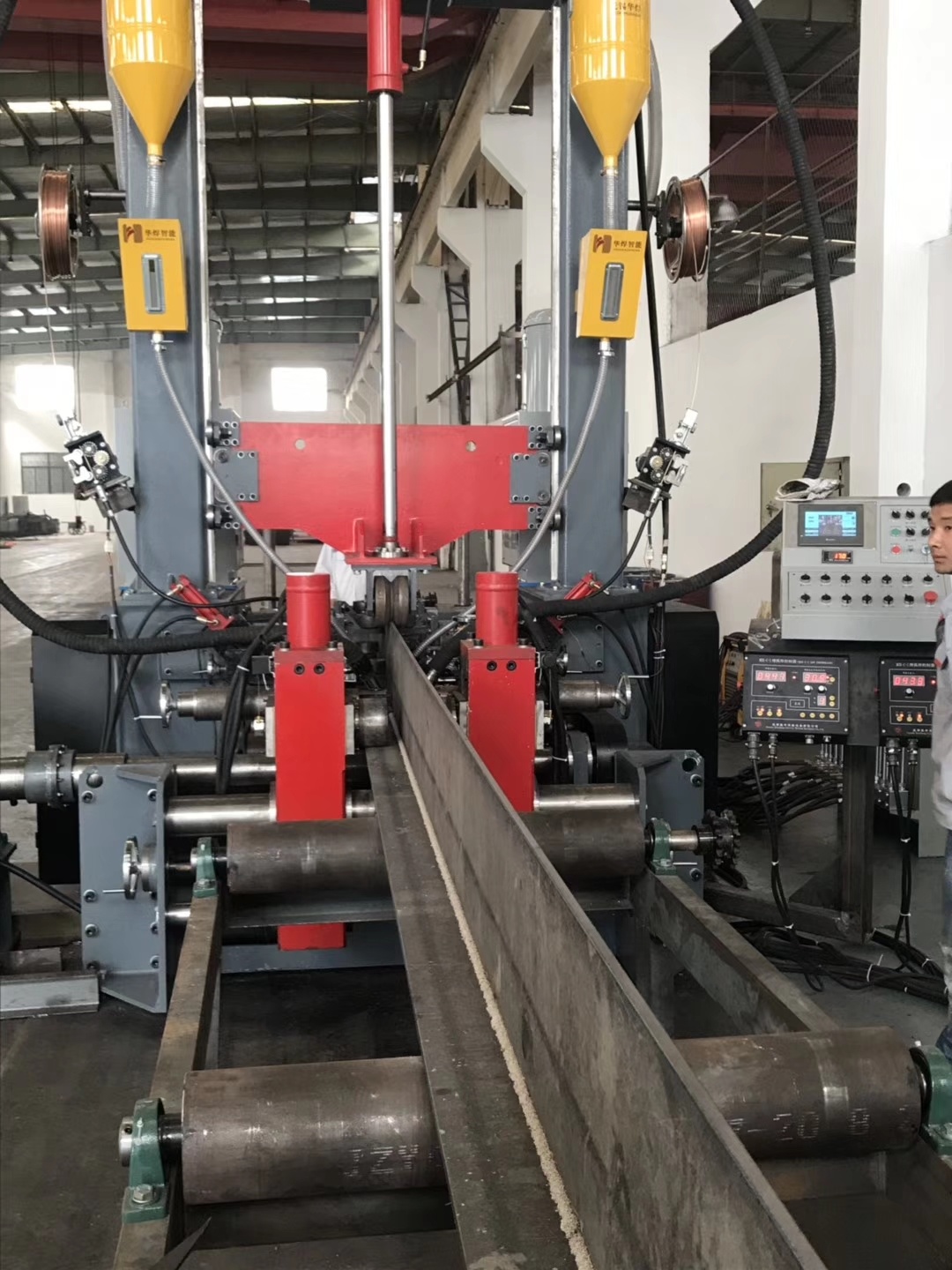

H beam assembly welding and straightening integral machine is a special machine which can make the H shape directly. It combines the working procedures of assembling machine, gantry welding machine, and straightening machine into one machine, which Significantly improved production efficiency, reduced equipment costs, and saved equipment installation space. Thus is a high-efficient machine for H-beam and T-beam production.
Main Technology paramter
Model |
| FYZHJ-1600 |
Web Size | Thickness(mm) | 6-20 |
Height (mm) | 200-1600 | |
Flange size | Thickness(mm) | 6-20 |
Width(mm) | 150-650 | |
Straightening thickness(mm) | 6-20 | |
Fillet Height | mm | ≤8 |
Workpiece length | mm | 4000-15000 |
Feeding speed | m/min | 0.2-2(frequency convert adjustable VFD) |
Input conveyor | m | 3 converyor* 2.6M (one powered) |
Output conveyor | m | 11.5M(including lift conveyor) |
Power | KW | 18.1KW |
