Industrial welding robot
Laser welding machine is a machine for laser material processing. It has a high degree of automation and a simple welding process. According to the working method, it is divided into laser mold welding machine, automatic laser welding machine, laser spot welding machine, optical fiber transmission laser welding machine, etc. The weldable graphics include: point, straight line, circle, square Or any plane graphics drawn by AUTOCAD software.
key word:
Category:
Welding Robot
E-mail:
Industrial welding robot
Product Description:
FY-RW500 welding robot is an industrial robot engaged in welding work. It is a multipurpose, reprogrammable automatic control operator with more than three programmable axes for industrial automation.
Stabilize and improve the welding quality, and can reflect the welding quality in the form of numerical values; improve labor productivity; improve the labor intensity of workers, and can work in harmful environments; reduce the requirements for workers' operating skills; shorten the preparation for product modification and replacement cycle and reduce corresponding equipment investment.
Technical Parameters:
|
Model |
FY-RW500 |
|
6 axis welding robot |
Degrees of freedom: 6 |
|
Specified load: 10kgs |
|
|
Arm span: 2000mm |
|
|
J3 axis additional load: 12kgs |
|
|
Weight: 160kgs |
|
|
Repeatable positioning accuracy: ±0.05mm |
|
|
Voltage: 3 phase 380V |
|
|
Industrial robot control system |
User storage space: Industrial grade SD CARD/256MB |
|
Controller: OP panel/function selection button |
|
|
Control axis: 6+3 axis |
|
|
Control servo：EtherCAT bus servo |
|
|
Operating mode：Teaching, online, remote |
|
|
Programmatically：Online teaching, process programming |
|
|
Motor function：Point to point, straight line, arc |
|
|
Digital pulse water-cooled welding machine (500RP Plus) |
Rated input voltage：3 phase 380V±10% 50hz |
|
Rated input capacity: 24KVA |
|
|
Rated input current: 38A |
|
|
Rated output voltage: 39V |
|
|
Rated load duration: 100% |
|
|
Output no-load voltage: 106V |
|
|
Welding wire diameter: 0.8mm、1.0mm、1.2mm、1.6 mm |
|
|
Gas flow: 15-20L/min |
Product display：

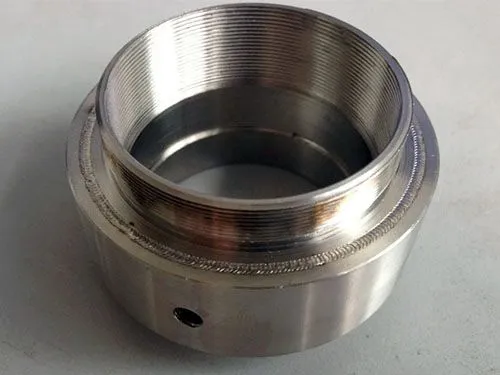

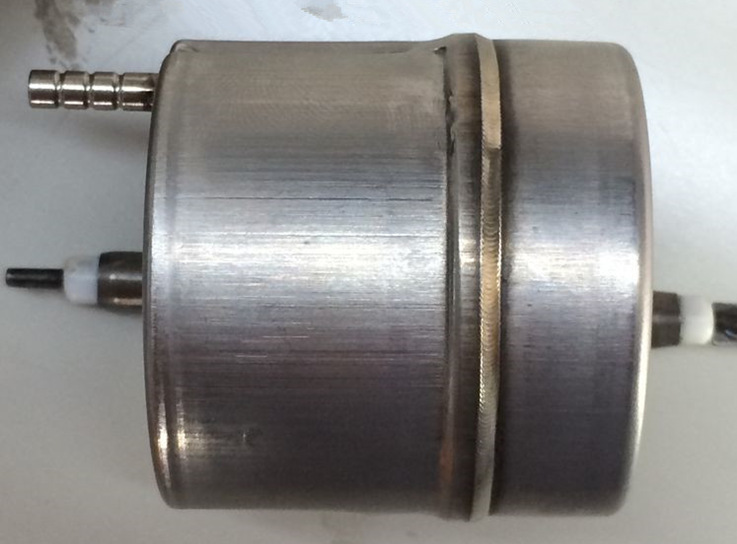

Welding sample
After-sales service:
1. Warranty.
——Farin Laser provides a 2-year free warranty and provides customers with timely solutions.
2. Follow up.
——Farin Laser will regularly call or visit customers to perform equipment maintenance and archiving.
3. Online services.
—Farin Laser will respond to any questions from customers within 1 hour during working hours,
4. Overseas services.
——Farin Laser can provide overseas machinery installation, training, maintenance and other services.
Why choose us
① industrial computer with a 19 inch screen, it is more in line with the habit of using a computer
② dual cooling water chiller is more professional and can work for a long time
③ the new appearance design is more beautiful
④ pressure resistant and explosion proof water pipes and air pipes ensure the safe and stable operation of the machine under special circumstances
⑤ fully enclosed fireproof is a high and low temperature towline, which ensure the safety of the operation site
⑥ X axis flame retardant dust cover
⑦ highly flexible, anti-breaking cable that can shield external interference signals
⑧ fully automatic oiling system
⑨ high strength body leveling feet, more suitable for different venues of customers, ensuring high quality operational cutting
⑩ air cushion film cling film pearl cotton three-layer soft packaging stand
