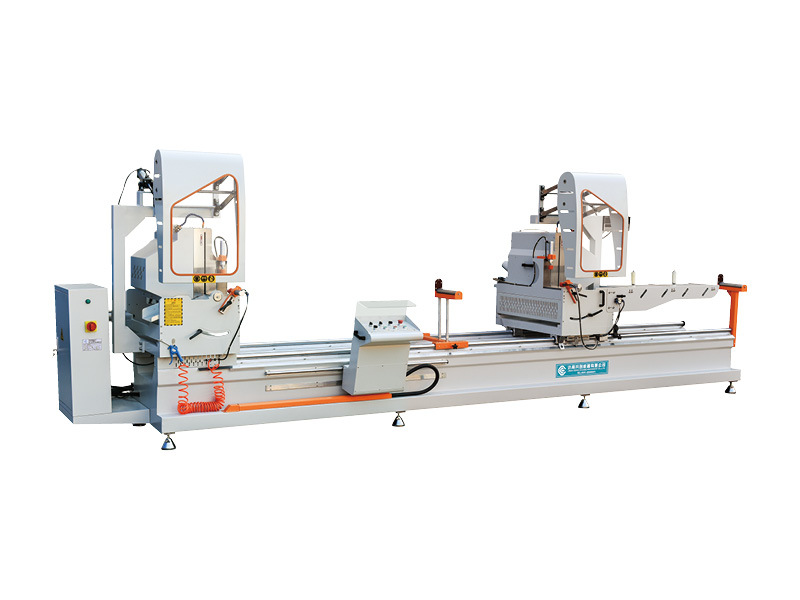

Double-Head Cutting Saw for Aluminum and PVC Pprofile window machine

Double-Head Cutting Saw for Aluminum and PVC Pprofile LJ04-600*4500 window machine



Processing Performance and Features

This machine is the special double head cutting saw equipment for aluminum window and door.

The machine adopts Europe model with neat appearance and good style.

The cutting length is digital shown, it is precision and views directly.

The position of the saw is digital display

The directly connected blade adopts leer-swing cutting type.

The feeding of the blade is driven by air draulic damping cylinder, with smooth cutting.

The imported blade with high precision makes the cutting surface smooth.

The following saw cover keeps it working in the clean environment.



The stuff follow up supporter can reduce the machine space. The profile was clamped by two cylinders in every head, and kept the cutting security.

Technical parameter：

Input power source

380V/50Hz

Total power

6.0KW

Working air pressure

0.5-0.8MPa

Air consumption

200L/min

Saw blade rotate speed

2800r/min

Max. cutting section

135*190mm

Cutting length

330-4500mm

Dimension

6000*1600*1950mm
