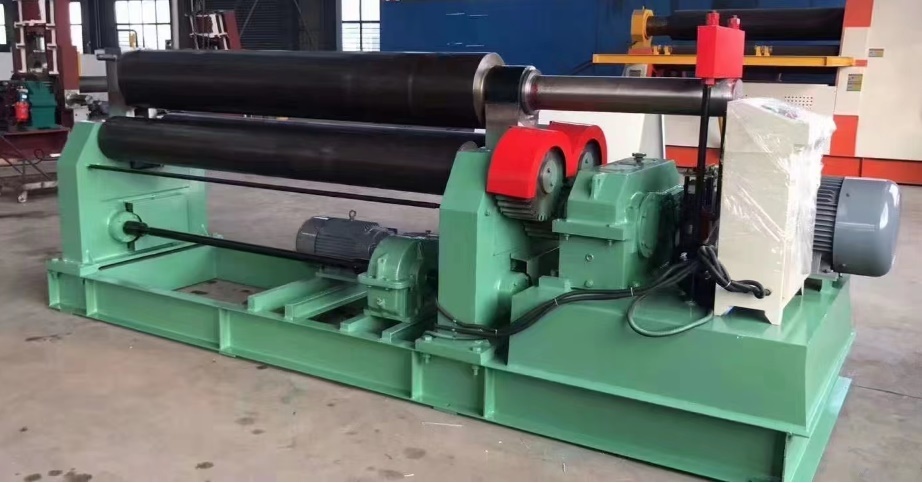

THREE ROLLERS SYMMETRIC ROLLING MACHINE STEEL PLATE ROLLING MACHINE
This is a processing equipment for bending arc and bending circle of metal plate.
key word:
Category:
auxiliary product
E-mail:
THREE ROLLERS SYMMETRIC ROLLING MACHINE STEEL PLATE ROLLING MACHINE
THREE ROLLERS SYMMETRIC ROLLING MACHINE STEEL PLATE ROLLING MACHINE
Description:
The structure of the machine is three-roll symmetrical, the upper roller in the middle of the two lower rollers symmetrical position for vertical lifting movement, through the screw worm drive to obtain the upper roller for lifting movement, through the reducer output gear meshing with the lower roller gear to obtain the two lower rollers for mutual rotation movement, to provide torque for the rolling plate. The machine is a whole structure, the working part and the main driving part are installed on a rigid welding base, which facilitates the installation and debugging of the machine.
Main technical dates:
No. | Type | Main Technical Data | Unit |
1 | Max Thickness Of Coiled Plate | 12 | mm |
2 | Max Width Of Coiled Plate | 2000 | Mm |
3 | Working length of roller | 2050 | mm |
4 | Yielding Limit Of Sheet Metal | 245 | Mm |
5 | Diameter Of Top Shaft | 240 | Mm |
6 | Diameter of Bottom Shaft | 180 | Mm |
7 | Central Distance Between Bottom Shafts | 280 | Mm |
8 | Coil velocity | 4 | m/min |
9 |
Motor Power | 7.5 | Kw |
