Gantry Type CNC Laser Cutting Machine with Roller Rail Base Model LC12028M ground rail gantry model is a high-precision, large-format, high-power laser cutting machine developed by combining domestic and foreign advanced technology and its own ten years of cutting experience. It is widely used in engineering machinery, wind power manufacturing, agricultural machinery, steel structures, etc. Medium-thick steel plate cutting industry.

key word:

laser cutting machine fiber laser cutting machine pipe cutting machine plate cutting machine gantry type laser cutting machine Gantry Type CNC Laser Cutting Machine CNC cutting machine Gantry cutting machine Large format laser cutting machine High power laser cutting machine

Category:

Laser cutting machine

Steel Structure Processing Machine

图片名称

E-mail:

wensun88@aliyun.com

MORE PRODUCTS
Inquiry

Ground Rail Gantry Beam Protected Fiber Laser Cutting Machine LC12028M

Gantry Type High Power CNC Laser Cutting Machine with Roller Rail Base

Ground Rail Gantry Beam Protected Fiber Laser Cutting Machine LC12028M

The Gantry Type High power large format CNC Fiber Laser Cutting Machine is a specialized equipment used for high-precision cutting of large-format metal sheets. It is commonly employed in industries such as aerospace, automotive, and metal fabrication. This machine utilizes advanced fiber laser technology to provide efficient and precise cutting of various metals, offering high power and a large format cutting area. It enhances productivity in manufacturing processes that require accurate and fast cutting of metal sheets for various industrial applications.

Apply scope of Gantry Type High power large format CNC Fiber Laser Cutting Machine:

Gantry rail high power laser cutting machine:

Low cost, the laser only consumes 6-9 kilowatt hours of electricity per hour; it can cut various metal sheets with air;

High performance, using Raycus/Max fiber laser, stable performance, service life of more than 100,000 hours;

High speed and efficiency, thin plate cutting speed can reach tens of meters per minute;

Steel plate welded bed, high strength and good stability;

The cutting edge has good quality, small deformation and smooth and beautiful appearance.

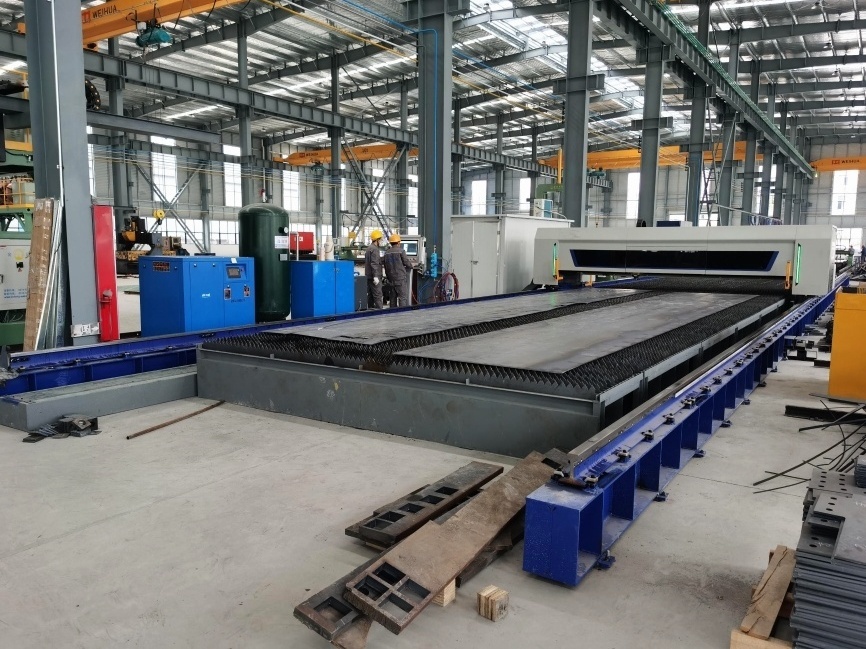

The standard effective cutting length of the equipment is 13m (single station) and 25m (double station), which can also be customized according to customer needs; it adopts a floor-standing gantry structure, which is suitable for precision cutting of large-format plates, extraordinary and ultra-wide; suitable for laser cutting of medium-thick plates, energy saving and environmental protection, low operating cost.



Parameters＆Configuration:

Model

LC12028M

Cutting area

13000*2800mm (customizable)

Laser power

6000-40000W

Position speed

35 m/min

Acceloration

0.6 G

Positioning precision

0.05 mm/m

Repetitive positioning precision

0.03 mm/m

CNC controller & software

FSCUT 8000 & CypNEST

Laser source

Raycus or MAX brand

Laser head

FSCUT BLT640 or Raytools or German Precitec

Water cooling

Hanli brand

Servo system

Japanese Yaskawa or Inovance models

Gear reducing box

Japanese Shimpo

Motions racks

Taiwan YYC

Steel rails

Heavy duty 50KG grade high precision

Fume extraction system

Extractor with filter cartridges & side draft table

Operating Voltage

380V±5%  50HZ



Cutting effect display:



Cutting sample

FarinFarinFarin

FarinFarinFarin









Why choose us

① industrial computer with a 19 inch screen, it is more in line with the habit of using a computer
② dual cooling water chiller is more professional and can work for a long time
③ the new appearance design is more beautiful
④ pressure resistant and explosion proof water pipes and air pipes ensure the safe and stable operation of the machine under special circumstances
⑤ fully enclosed fireproof is a high and low temperature towline, which ensure the safety of the operation site
⑥ X axis flame retardant dust cover
⑦ highly flexible, anti-breaking cable that can shield external interference signals
⑧ fully automatic oiling system
⑨ high strength body leveling feet, more suitable for different venues of customers, ensuring high quality operational cutting
⑩ air cushion film cling film pearl cotton three-layer soft packaging stand
